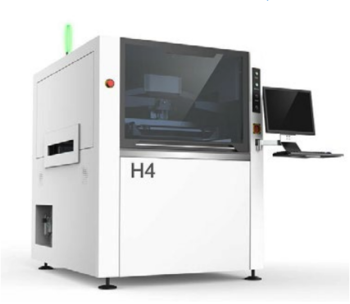

H4E Automatic Stencil Printer

Model Number: H4E Clock fast Lead Time: 4 weeks Donwload Data Sheet H4E
This automatic printer H4E with automatic vision recognition function using high-precision Servo drive system to achieve fast and accurate alignment, that can reach +/0.01mm of precision.
This price includes the Import Tariff and the Shipping Cost door-to-door!
Product Pricing
Quantity:
Unit Price:
$30,000.00
Total: $30,000.00
H4E
Automatic vision
recognition function

overview

An accurate printer must offer or take in consideration the following point: vision system with fiducious camera, cleanness of the stencil, Precision mechanical system, Clean & Clear software, and a stable electrical system. .

This fully automatic screen printer H4E with vision system with fiducials camera will determine whether the stencil & PCB aligned preciously.

Features

  • Vision system: vision system with fiducials camera.
  • Stencil Cleaning system.
  • Automatic 2D paste inspection.
  • Clean & Clear software.
  • Stable electrical system.

Other advantages

  1. Arch bridge type suspending direct-connected squeegee.
  2. Print head with the programmable and suspending self-adjusting stepper motor drive.
  3. Four-wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth.
  4. Unique belt transmission system avoids being stuck or fall-off of PCB.
  5. Programmable motor controls transport speed and puts PCB in the precise position.
  6. The unit to clean is separated from CCD camera, which can minimize the load of motor and impulse, improve the positioning precision, speed, and extend the service life

specs

Maximum PCB Size (X xY) 400mm × 340mm
Minimum PCB Size (X xY) 50mm x 50mm
PCB Thickness 0.4mm~6mm
PCB Warpage Max. PCB Diagonal 1%
Maximum PCB Weight Approx 1200kg
Transport Speed 1500mm/Second(Max)
Transport Height 900±40mm
Transport Direction Left-Right, Right-Left, Left-Left, Right-Right
Clamping System Side clamping,vacuum nozzle, Automation retractable Z pressure
Support System Magnetic Pin/Support Blocks
Print Head Two independent motorized print heads
Frame Size 470mm x 370mm~737 mm x 737 mm
Squeegee Type Stainless steel（standard), plastic
Adjustment Range X:±10.0mm;Y:±10.0mm;θ±2ª
Printing Accuracy ±0.025mm
Cycle Time ≤7s（Exclude Printing & Cleaning）
Changeover Time ≤5mins
Machine Dimensions 1220（L）×1530（W）×1500（H）mm
Machine Weight Approx:1200kg
×
