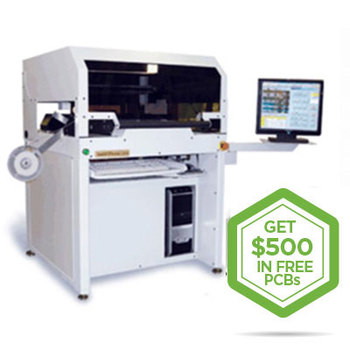

LS40V Pick and Place Machine with Vision

Model Number: LS40V Clock fast Lead Time: 4 weeks Donwload Data Sheet LS40V
The LS40V is our most popular model with Vision. The LS40V offers technologically advanced features with a 13" x 22" (330mm x 559mm) work area, 56 single feeder positions (up to 84 feeders using bank feeders) where quick setup, ease of operation and high reliability are paramount.
Product Pricing
Quantity:
Unit Price:
$37,500.00
Total: $37,500.00

Product Accesories for LS40V Pick and Place Machine with Vision

Carousel prev Carousel next

System Features

  • The highest quality with the most advanced equipment at a cost-effective solution
  • Accuracy ± .001” (0.025mm
  • Placement rates up to 4800 cph
  • The best GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
  • Accurately place, manager, and track components with SMTrue™ Smart Feeders
  • Up to 56 tape feeders, 84 - 8mm tape feeders with bank feeders
  • Accurately places a wide range of components including 0201s, LED’s, BGAs, 15mil pitch QFPs, SMT Connectors and many others
  • Servo driven, position feedback from a 2 micron linear scales coupled with a precision placement read
  • Integrated on-the-fly component centering using Vision (Cognex®) Laser Technology (Cyberoptics®) (Optional) or Mechanical fingers
  • Accurately place, manage, and track components with SMTrue™ Smart Feeders
  • Cut tape, loose, tube, or tray feeders

Components

The Cognex® vision assist allows accurate placement of 0201s, ultra micro BGAs, CSPs, QFPs and a wide range of virtually all SMT components.

Vision System

The BGA being centered at the left appears on the software window shown at the right. The LV-series vision centering pick and place systems use the full features of Cognex® vision.

Feeders

Standard tape feeder sizes include 8mm, 12mm, 16mm, 24 mm, 32mm and 44mm.

The vibratory feeder with frequency and amplitude control can handle loose and tube components.

Unique SuperStripTM feeders are a convenient way to use short tape strips.

Feeder positions are pre-programmed for quick set-up.

With the optional 12 position 8mm bank feeders, capacity can increase by 50%, i.e. the model LS60V would increase to a capacity of 144 8mm tape feeders.

Fluid Dispenser

Computer controlled in 10 millisecond increments with separate interval/raise-lower speed allows solder paste or adhesive glue to be applied accurately prior to component placement. This time/ pressure fluid dispenser has dispense rates up to 10,000 dots per hour.

Automatic 4-position nozzle changer with 4 nozzles

Standard Features

  • On-the-fly component centering with top & bottom cameras
  • Friendly easy to use Windows® based software for panelized boards, self diagnostics, error recognition, fault monitoring and more!
  • Friendly easy to use Windows® based software for panelized boards, self diagnostics, error recognition, fault monitoring and more!
  • Automatic fiducial correction
  • Positional resolution of 0.0000787" (2μm) with closed loop micro step driven motion control and digital encoders

specs

Max Board Size 13.5" x 22" (343mm x 560mm)
Smallest Component Capability 0201 components
Largest Component Size 2.00
Placement Accuracy ± 0.001" (0.025mm)
Max Placement Rate 4800 cph
Typical Verifiable Placement Rate 2500-3600 cph
Fine Pitch Capability To 15 mil pitch (0.381mm)
Max Travel Area 22" (X axis) x 22" (Y axis) (560mm x 560mm)
Overall Dimensions 40" x 42" x 53"h (1016mm x 1067mm x 1336.2mm)
Max no. of Feeders (8mm tape) 56
Max no. of Feeders with L-GB-12 Bank Feeders 84
Tape Feeders 8, 12, 16, 24, 32, 44 mm (Electrical)
Vibratory Feeders Loose, tube, stick (frequency & amplitude control)
Matrix Tray Feeders With Board/Matrix tray holders
Laser Centering Touchless Cyberoptics® laser (OPTION ONLY)
Vision System Cognex® Vision
Dispenser Option Up to 10,000 dots/hour
×
