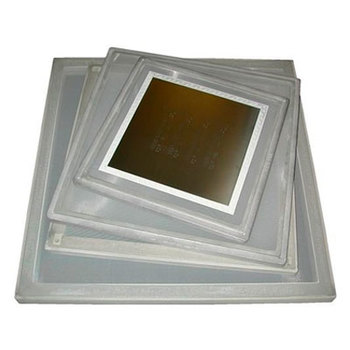

Framed SMT Stencils or glue-in stencils are laser cut solder paste stencil foils permanently mounted in a stencil frame using a mesh border to tightly stretch the stencil foil taut in the frame. Framed SMT Stencils are designed for high volume screen printing on printed circuit boards.
All of our laser cut stencils provide optimum solder paste volume control. Framed SMT Stencils have smooth aperture walls and can be used for 16 Mil pitch and below and for Micro BGA"s.
| Frame Size | Max. Foil Size | Max. Image Size | Price |
| Cast 8"x10" | 7"x9" | 5"x7" | $195.00 |
| Cast 10"x10" | 9"x9" | 7"x7" | $195.00 |
| Cast 12"x12" | 11"x11" | 9"x9" | $195.00 |
| Ext 12"x12" | 11"x11" | 9"x9" | $195.00 |
| Cast 12"x17" | 11"x16" | 9"x14" | $195.00 |
| Ext 12"x17" | 11"x16" | 9"x14" | $195.00 |
| Cast 15"x15" | 14"x14" | 12"x12" | $195.00 |
| Ext 15"x15" | 14"x14" | 12"x12" | $195.00 |
| Cast 20"x20" (OD 23”x23”) | 19"x19" | 17"x17" | $255.00 |
| Ext. 20"x20" (OD 23"x23") | 19"x19" | 15"x15" | $255.00 |
| Ext. 29"x29" | 24"x24" | 22"x22" | $255.00 |
|
**Cast frames are solid aluminum. **Extruded frames are hollow. |
|||
| Technology | 100% Laser Cut |
| Material Used | Stainless Steel |
| Stencil Thickness | .002 - .016 Inches |
| Minimum Cut width | .002 Inches |
| Maximum Size | 29"x29" Inches |
| Aperture tolerance | Within .00025 Inches |
| Allow for Fiducial Data | Yes |
| Allow for Panelized Data | Yes |
