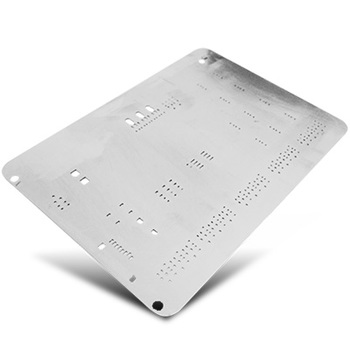

Frameless SMT Stencils

Frameless SMT Stencils

Model Number: STNC-FRMLSS Clock fast Lead Time: 24-Hour Turn

These laser cut stencils are designed to work with stencil tensioning systems also known as Reusable Stencil Frames like the Wizard Frame.

  • Reduces storage space requirements
  • Significantly less expense than framed stencils
  • Smooth aperture walls and can be used for 16 Mil pitch and below and for Micro BGA"s
** Frameless SMT Stencils are recommended for prototype printed circuit board assembly or short runs.

50% Discount on your first SMT Carrier
or Wave Solder Pallet!
Product Pricing
Quantity:

Unit Price:
$150.00
Total: $150.00

Customers Who Bought This Item Also Bought


Carousel prev Carousel next

overview

Frameless SMT Stencils also known as foils are laser cut solder paste stencils designed to work with stencil tensioning systems also known as Reusable Stencil Frames. These laser cut stencils do not need to be permanently glued in a frame. Frameless Stencils are significant less expensive than Framed Stencils and reduce storage space requirements.

They are use for production but also for PCB prototype assembly. Frameless SMT Stencils are designed for screen printing on printed circuit boards. Our Frameless SMT Stencils provide optimum solder paste volume control. They have smooth aperture walls and can be used for 16 Mil pitch and below and for Micro BGA's.


Main Features

Unique Process
for Smooth Aperture Walls
  • Very Clean Laser-Cut Apertures
  • Excellent Print Performance
  • Excellent for High-Volume Stencil Printing on printed circuit boards
  • Unique Process Creates Permanent Non-removable Non-fading Fiducial

specs

Technology 100% Laser Cut
Material Used Stainless Steel
Stencil Thickness .002 - .016 Inches
Minimum Cut width .002 Inches
Maximum Size 29'x29' inches
Aperture Tolerance Within .00025 Inches
Allow For Fiducial Data Yes
Allow for Panelized Data Yes
×
