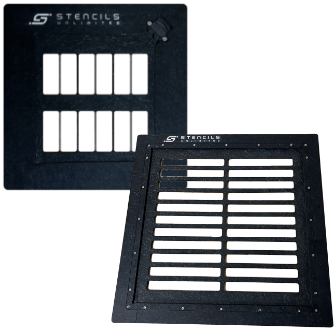

Surface Mount Carriers

Model Number: SMT-CARRIER

GET A 25% DISCOUNT on your first Surface Mount Carrier!
SMT carriers are used to protect, support, and transport printed circuit boards of different sizes and shapes including flex and rigid-flex PCBs through the entire SMT process. We manufacture them in our state-of-the-art facility in Tualatin, Oregon using a heavy-duty (Electro-Static Discharge) ESD composite material that exhibits good machinability in addition to the following characteristics:
  • Withstand high temperatures and resist the corrosive effects of solder and flux.
  • Low heat and moisture absorption.
  • Dimensional stability for proper board alignment.

GET A SPECIAL DISCOUNT WHEN YOU ORDER MULTIPLE CARRIERS!
  • 5% Discount, 2-5 Units
  • 7.5% Discount, >5 Units
  • 10% Discount, >10 Units

Don’t wait, Quote and Order your Surface Mount Carriers Online.
  • Material Thickness: 6mm, 8mm and 12mm
  • # of Standard Pressure Holders: $2.00 each
  • Carrier Size: Carrier Width x Carrier Length (see price table)
  • # of Flexible Pressure Holders: $0.00 each
Product Pricing
Quantity: 1
Lead Time:
Unit Price:
Total:
For a custom quote please email your files to For a custom quote
please email your files to
support@stencilsunlimited.com
or request a
Custom Quote

BENEFITS OF SURFACE MOUNT CARRIERS

  • Reduce soldering defects
  • Reduce setup time
  • Enable handling of flex & rigid-flex PCBs
  • Improve repeatability
  • Reduce board warping
  • Reduce labor cost

HOW TO QUOTE AND ORDER YOUR SURFACE MOUNT CARRIERS

You can request a custom quote or quote and order your SMT carrier online. Please follow the next steps to quote and order online.
  1. Enter the part number and revision of your pallet. It is very important to assign a part number and a revision to any custom part for identification.
  2. Attached a zip file containing the following information:
    1. Gerber or Step files
    2. Photos of previously assembled boards (if available)
    3. Special instructions
  3. Select the material thickness. If you are not sure what to select, please request a custom quote.
  4. Enter the approximate carrier length and width in inches.
  5. Select the type of pressure holder and quantity needed. Select none if your carrier does not require pressure holders.
  6. Enter the number of carriers you would like to order in the “Quantity” field in the upper right corner of the screen. An automatic discount is applied depending on the quantity.

USING SURFACE MOUNT CARRIERS DURING THE SMT PROCESS

Whether you are using an automatic stencil printer or a prototype stencil, an automatic pick and place machine or a pair of tweezers, an automatic 8-zone reflow oven or a toaster oven, sometimes you just need a surface mount carrier to get the job done. These are typical instances of when you may need to use carriers.

  • PCBs that are too small for conveyor systems.
  • PCBs that too thick or too thin.
  • Odd-shape boards.
  • Flimsy boards. Flex and rigid-flex PCBs usually require support during the SMT process.
  • PCBs with SMT components are too close to the edge of boards.
×
